CG-100 Canal Telemetry System is a non-contact SONAR level sensor which offers a large enough measurement range to easily monitor local canal network. Its small blanking distance and narrow beam width allows it to be easily installed in stilling wells.

The GSM connectivity and low power consumption allows telemetry system to independently work at remote locations for long durations without the need of human interference.

Features

• CG-100 is powered by an ultrasonic sensor that allows increased depth measurement range while being very cost-effective.
• GSM network connectivity allows CG-100 to be installed at remote locations and feed live telemetry data.
• CG-100’s remote operations are further complemented by onboard batteries and intelligent software that ensures low power usage, allowing human intervention free function of up to 1 year at recommended configurations.
• Extensions can be made in CG-100 to connect auxiliary sensors (e.g. humidity sensor). Thus it is a powerful platform to collect a variety of telemetry data.
• CG-100 works well in rugged and humid environments thanks to its IP-67 rated enclosure. Another steel enclosure can be used to protect the device from external interference.

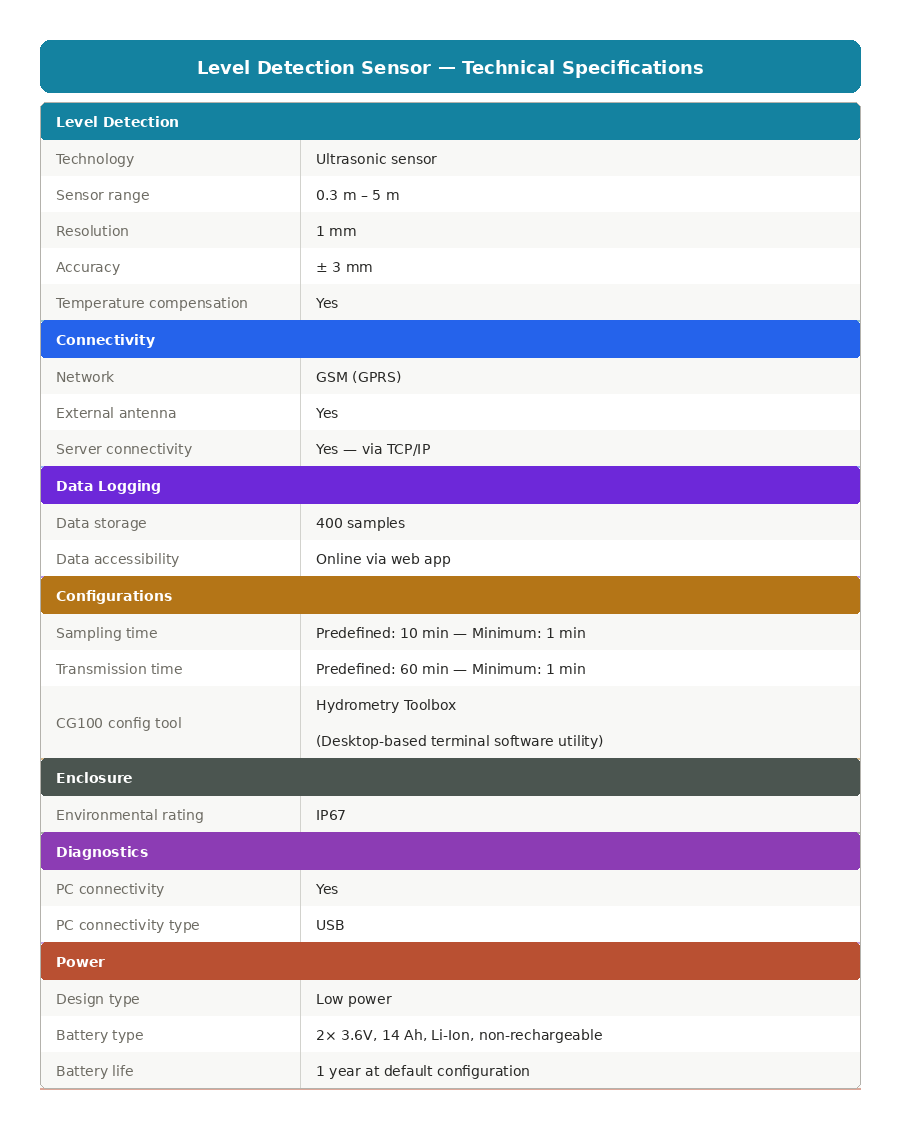

Specifications
